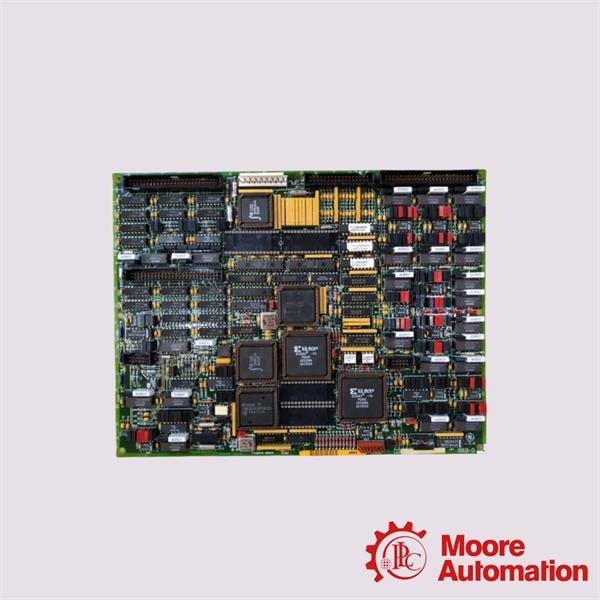

DS200TCCBG3BDC | General Electric Common Extended Analog I/O Board

DRIVE BOARDEXTENDED ANALOG I/O BOARDTC2000MARK VDS200TCCBG3B is a Common Extended Analog I/O Board developed by GE under the Mark V series. The Common Extended Analog I/O Board (TCCB) provides scaling and conditioning, for additional analog I/O signals read from the TCEB board in the P1 core and the TBCB terminal board installed on the R5 core. These signals consist of the line current inputs, RTDs, generator and bus voltage inputs, and 4-20 mA/0-1 mA inputs. Through the 3PL connector, the STCA board gets the scaled and conditioned signals.
