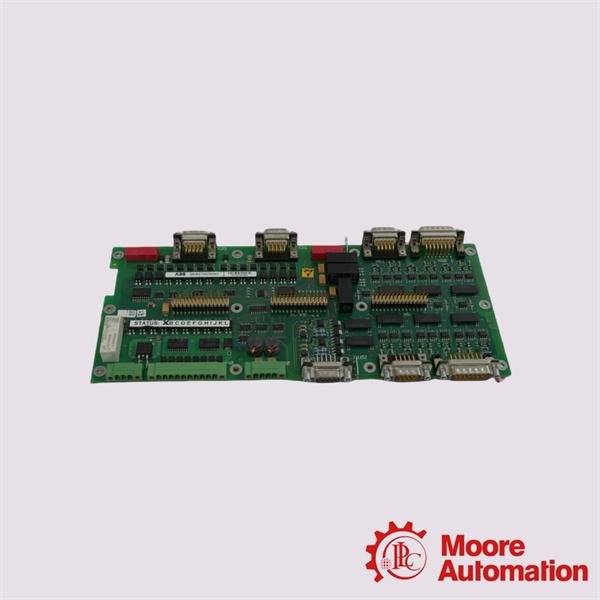

3BHE014185R0001 UUD148 AE01 | ABB Voltage Transducer Control Board

AC Voltage:3 × differential 0 … 4.16 kV RMS, 50/60 Hz, burden < 0.5 VA, 0.2 % accuracy classDC-Link:2 × 0 … 6 kV DC, high-impedance 50 MΩ divider, 0.5 % FS errorInput impedance: 2 MΩ // 60 pF per phase (surge-proof)Common-mode:15 kV pk (1.2/50 ?s) per IEC 61800-5-1Over-voltage:Continuous 120 %, 10 s 150 %, 1 s 200 %Logic supply:24 VDC ±20 %Operating Temp:–40 … +70 °C (T3 … T6) – no deratingStorage Temp:–50 … +85 °CHumidity:5 … 95 % RH non-condensing
