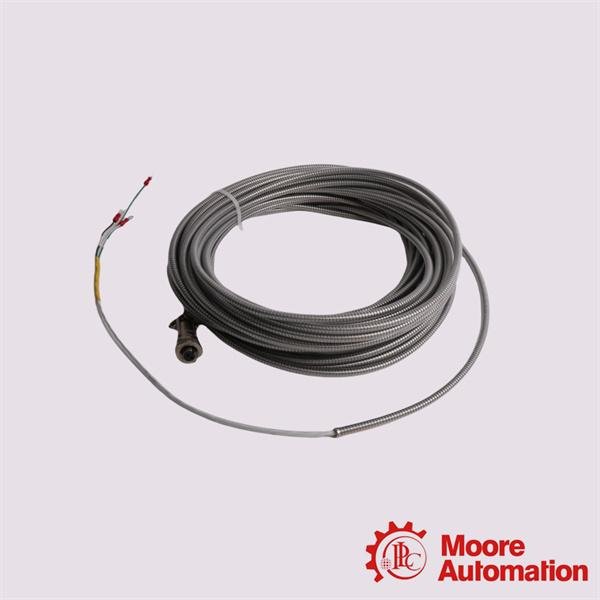

84661-66 | Bently Nevada Velomitor Interconnect Cable

Stainless steel armor over shielded 0.382 mm2 (22AWG) cable with a moisture resistant femaleconnector at the HTVS end and ring lugs at themonitor end. Temperature range -29 to 121°C (-20to 250°F).Conductors：3 × 22 AWG (0.382 mm?) stranded tinned copper, IEC 60228 class 5Insulation:ETFE (Tefzel), 600 V, 200 °C rated, wall 0.25 mmTwist:Triad lay 50 mm nominal for magnetic noise rejectionShield:100 % coverage, tinned copper braid, < 10 mΩ/mArmor:304 SS interlocked hose, OD 6.4 mm (0.25 in), crush 1 000 N, bend radius 38 mm (1.5 in) repeated / 25 mm (1 in) fixedJacket:Extruded FEP, 0.4 mm wall, blue (standard) or black (metric) for UV & chemical resistanceOverall OD:8.0 mm ± 0.2 mm (0.315 in)
